Accessing Data from External Clients (QGIS)

Install QGIS Desktop

• Open the Ubuntu Software app

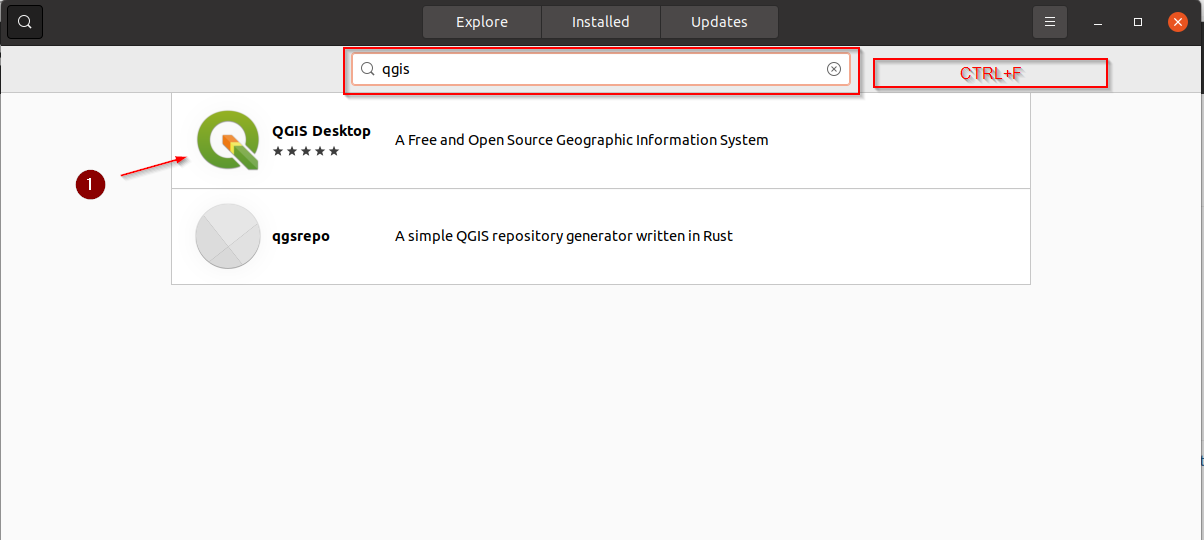

• Click CTRL + F and search for qgis; click on the QGIS Desktop icon



• Click on INSTALL and wait for the process to finish

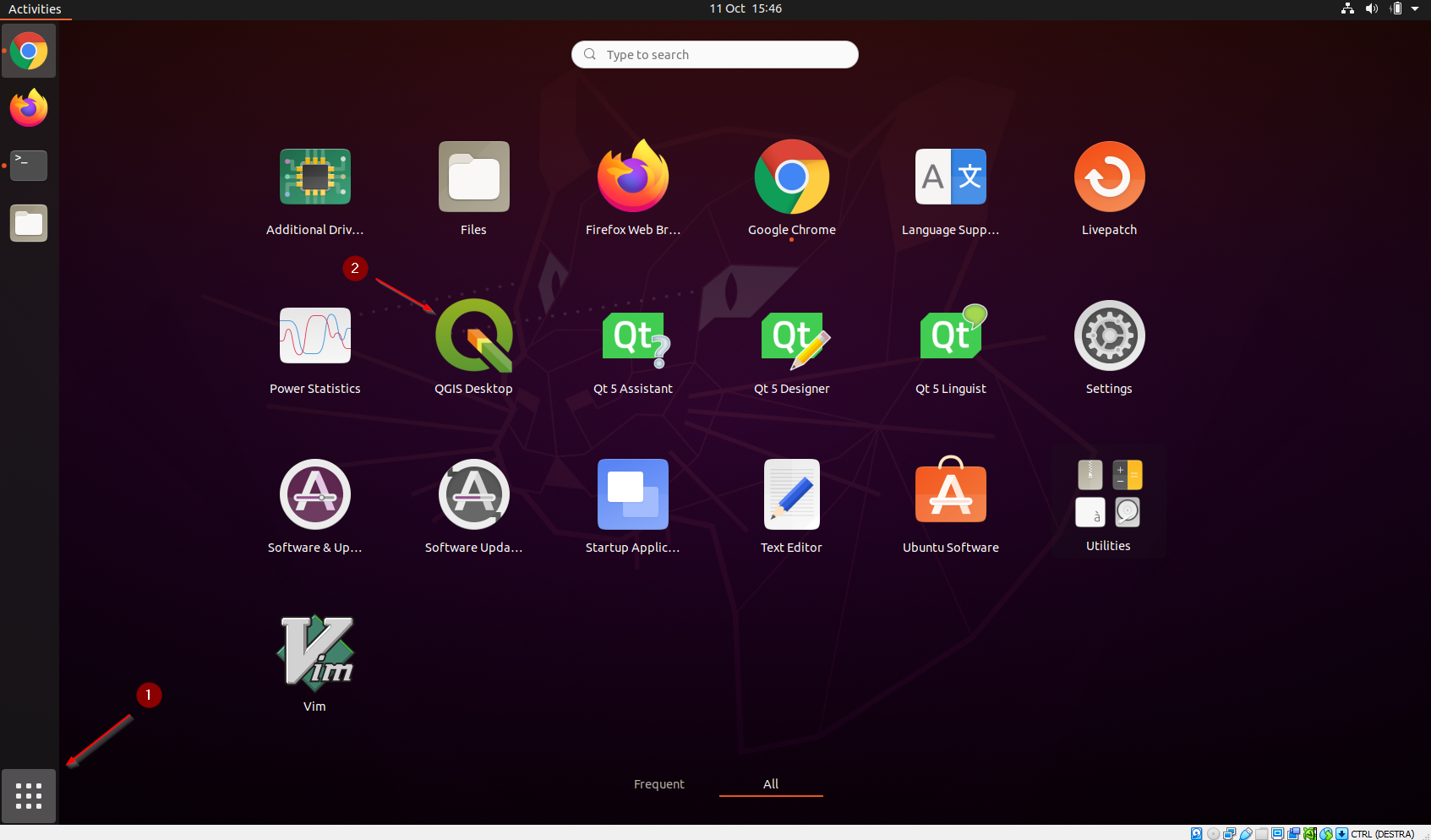

• Once the app has been installed, open it by clicking on the icon



Connect through BASIC Auth

This is the easiest way to connect the client to GeoNode:

- Pros: very easy to configure
- Cons: it uses always a fixed user and you need to change it anytime if you want to switch it

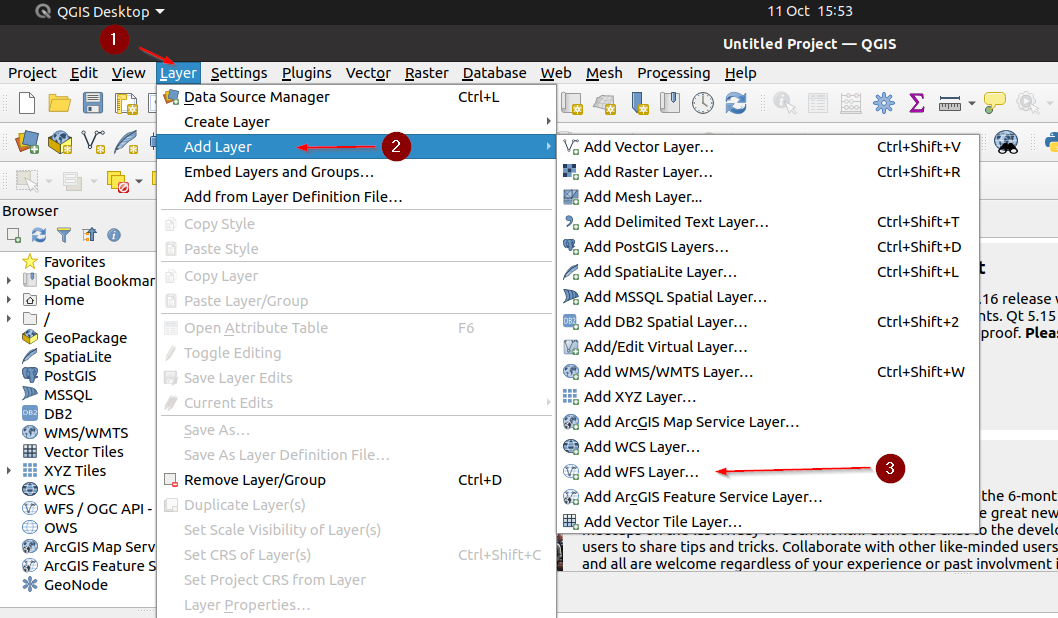

• Let’s add a VECTORIAL layer accessible to test_user1 to the client; click on Layer > Add Layer > Add WFS Layer...

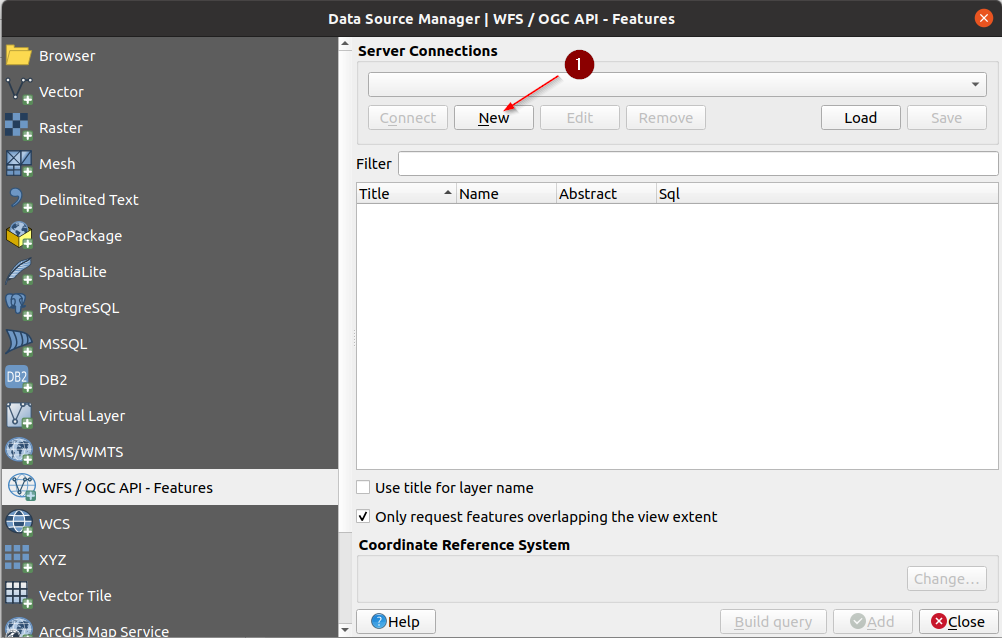

• Create a New Connection

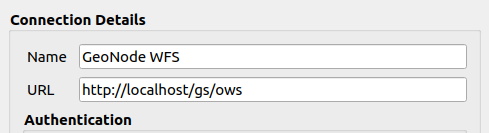

• Provide a name, e.g. GeoNode WFS and the following URL:

  • http://localhost/gs/ows



  IMPORTANT: It is mandatory to pass through the GeoNode proxy /gs/ instead of hitting the GeoServer endpoint directly

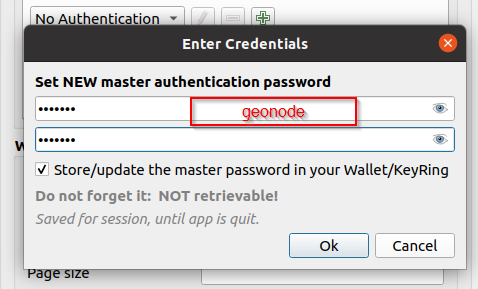

• If the client asks for a NEW master password you can just provide anyone, e.g. geonode

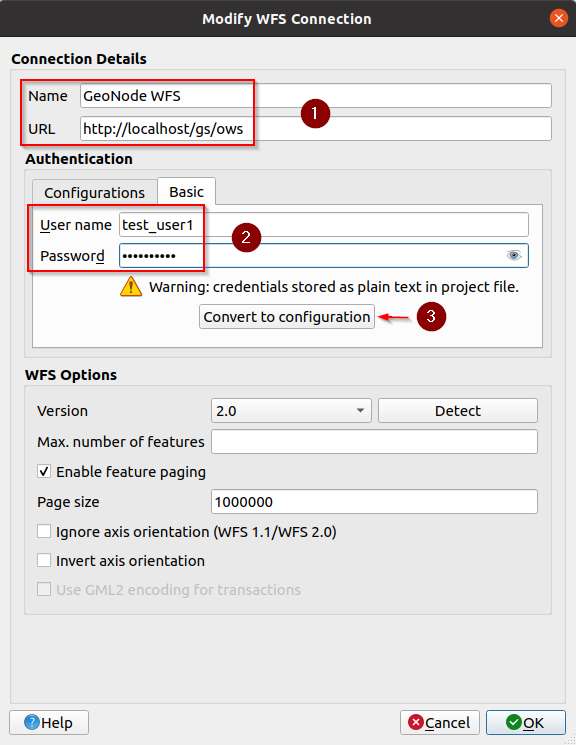

• Switch to Basic authentication, provide the test_user1 credentials and click on Convert to configuration

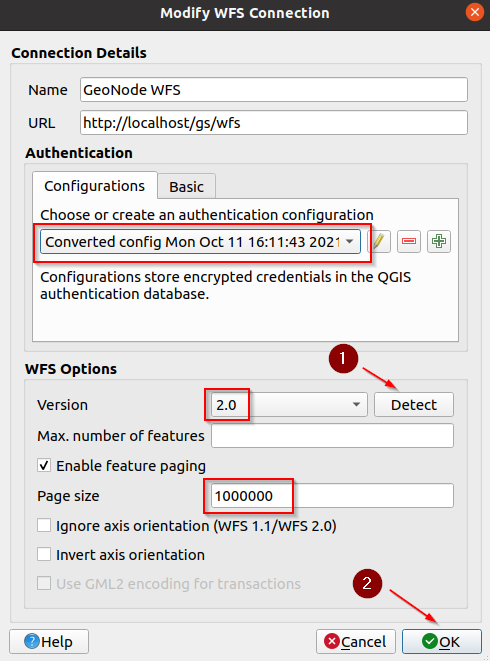

• Make sure the converted configuration is selected and click on Detect in order to verify that it works; click on OK when finished



Connect through OAuth2

This is the easiest way to connect the client to GeoNode:

- Pros: difficult to configure
- Cons: it redirects to GeoNode to authenticate, so you can use any login provided by GeoNode

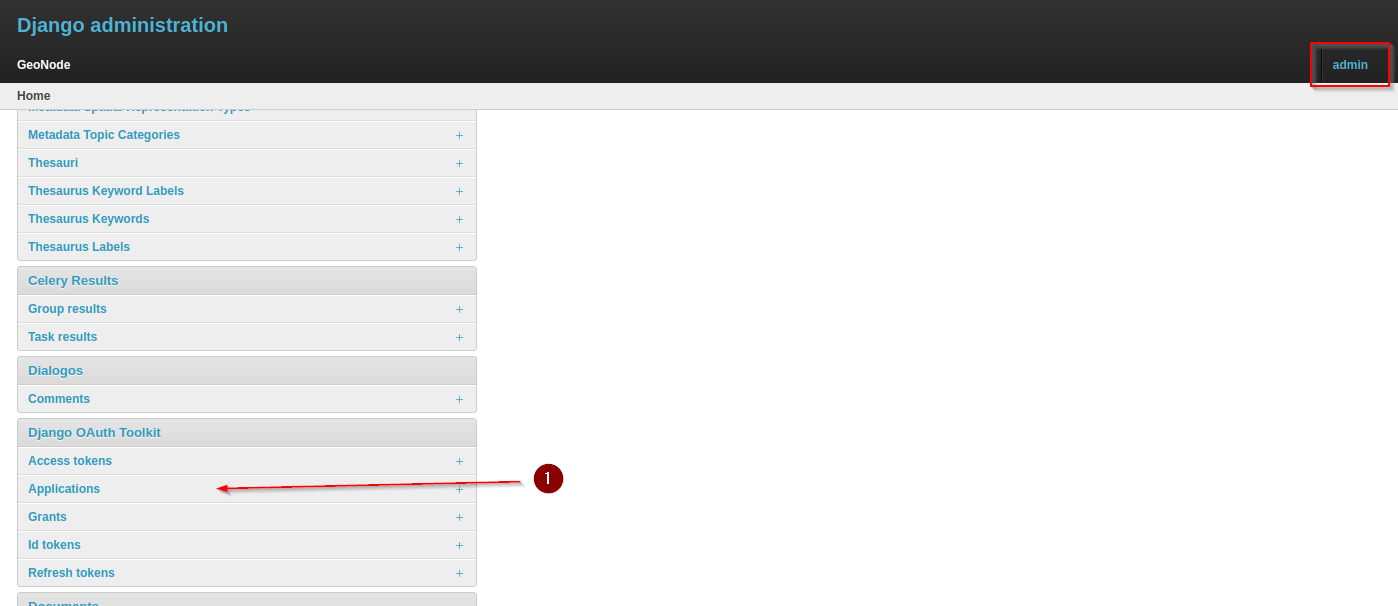

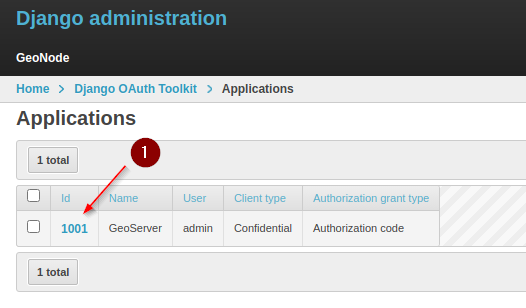

• We need to prepare GeoNode first; as an admin go to the Admin Dashboard and look for Django OAuth Toolkit > Applications



• Edit the GeoServer one

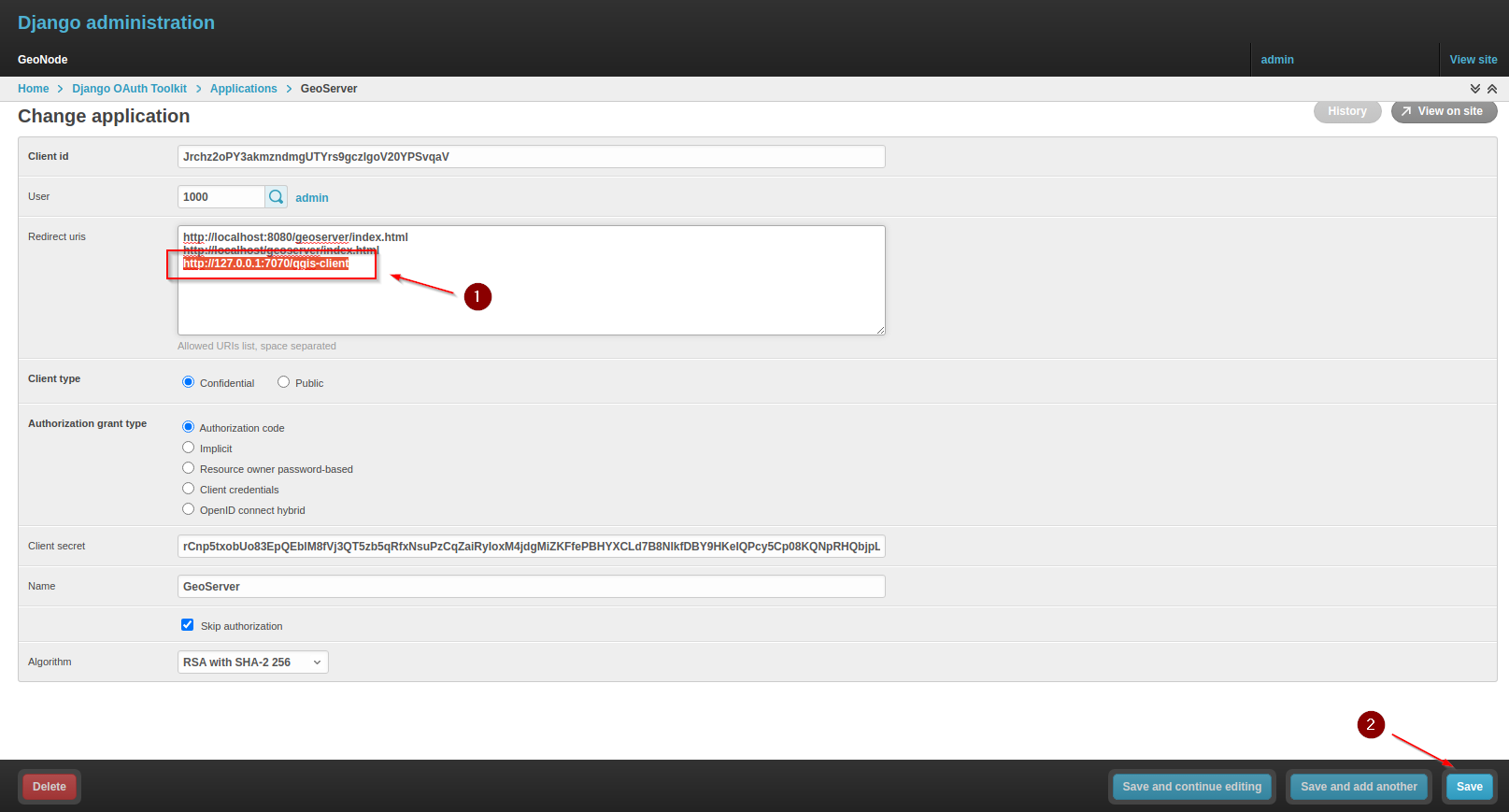

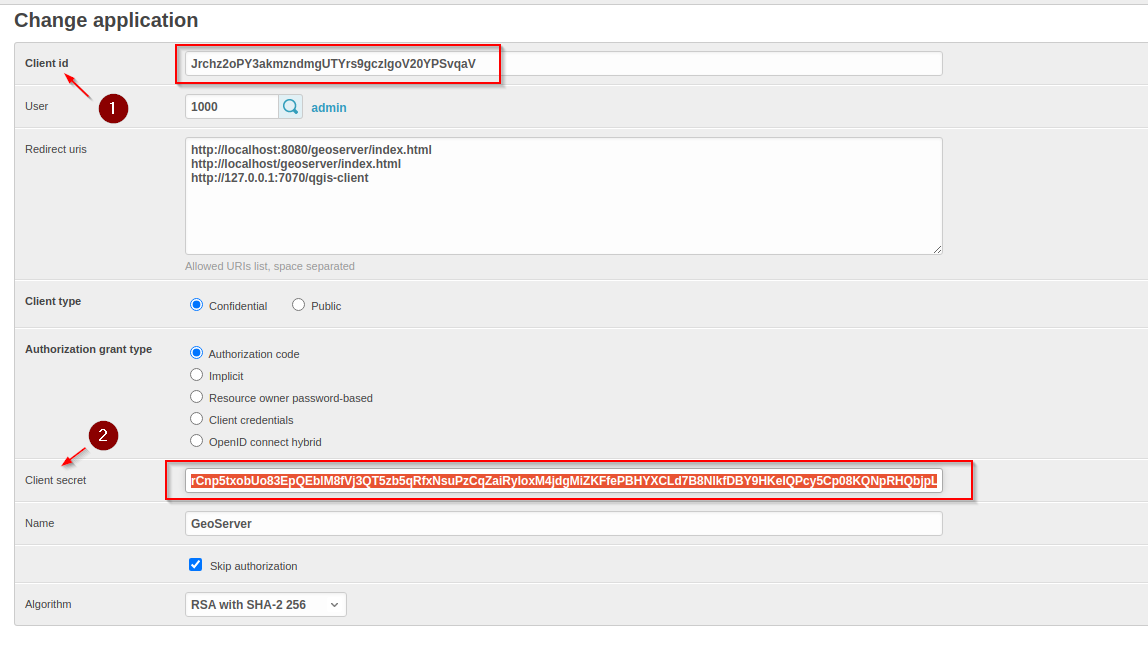

• Add the following URL to the Redirect URIs section and take note of the Client ID and Client Secret keys:

  • Copy the Client ID / Client Secret



  • Add Redirect URIs and Save: http://127.0.0.1:7070/qgis-client



• Let’s add a VECTORIAL layer accessible to test_user1 to the client; click on Layer > Add Layer > Add WFS Layer...

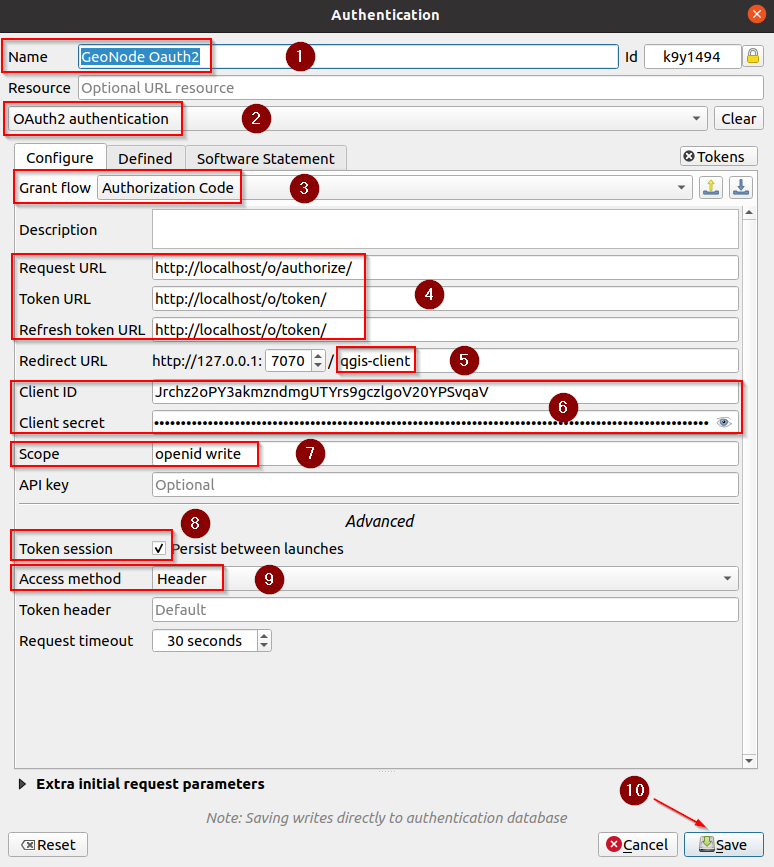

• Add a new OAuth2 Authentication config and fill the fields as follows:

  • Name: Provide any name you want e.g. GeoNode OAuth2

  • Grant Flow: Authorization Code

  • Request URL: http://localhost/o/authorize/ (the / at the end is IMPORTANT!)

  • Token URL: http://localhost/o/token/ (the / at the end is IMPORTANT!)

  • Refresh token URL: http://localhost/o/token/ (the / at the end is IMPORTANT!)

  • Client ID / Client Secret: The ones above

  • Scope: openid write

  • Token session: True

  • Access method: Header

  • Token header: empty (it is important you leave this param empty)

  • Save

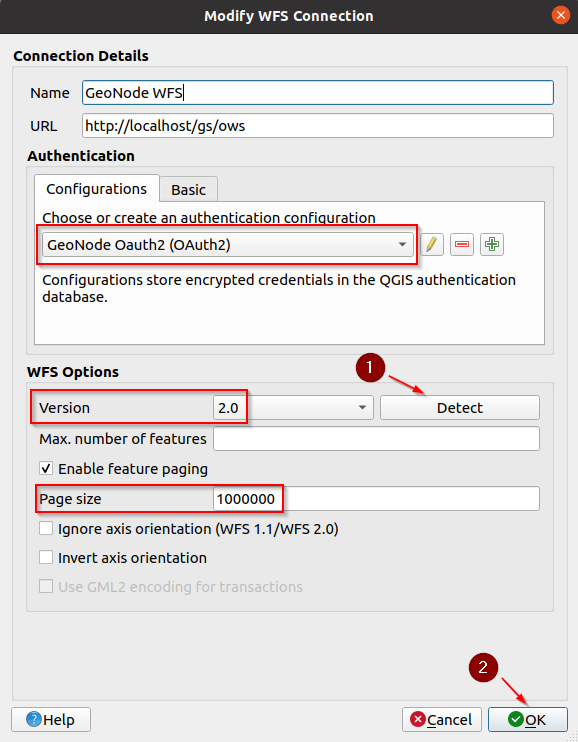

• Make sure the new configuration is selected and click on Detect in order to verify that it works; click on OK when finished

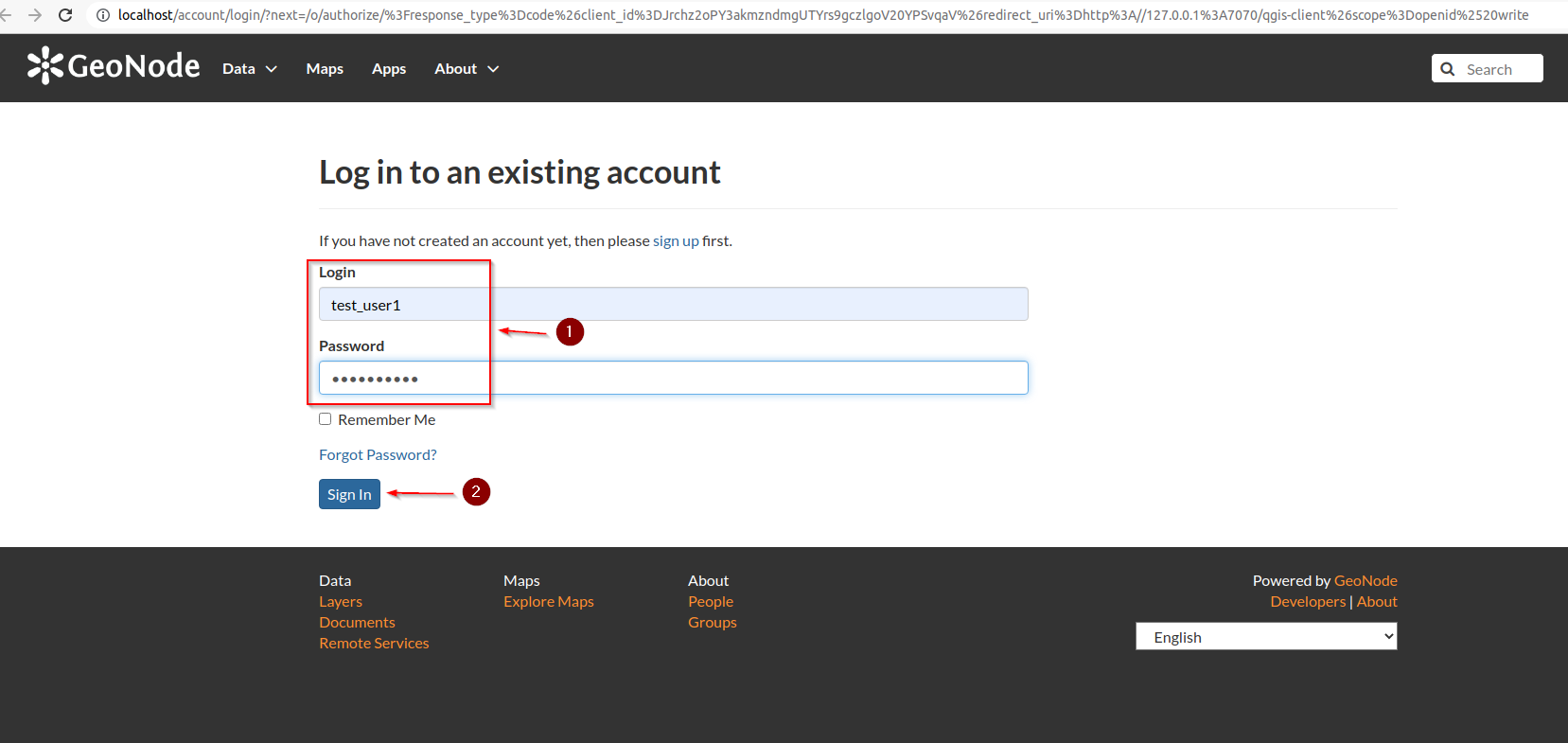

• The client will open automatically a browser session, if you are not logged in, sign in with test_user1

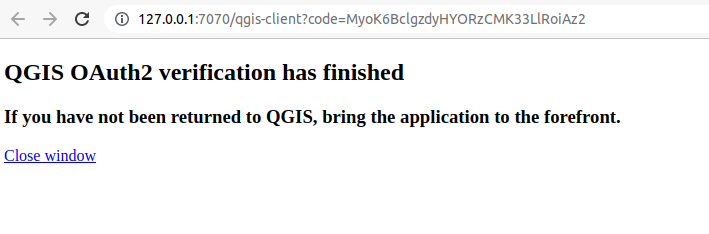

• The window below means that the authetnication process was successfull; you can safely close it and go back to the client



Attach Layer to the Project

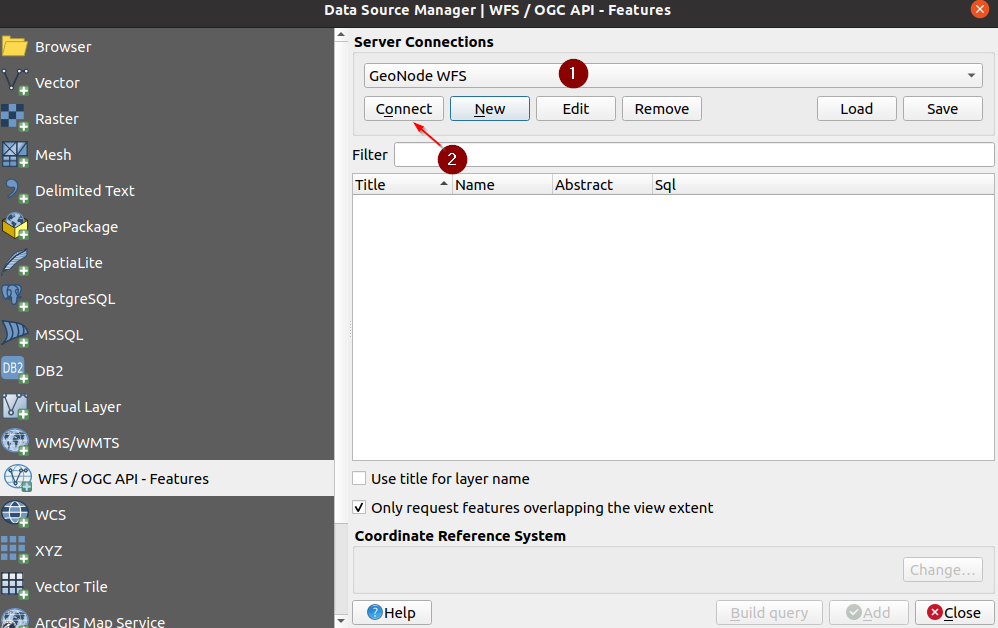

• Once the connection has been configured and saved, whatever it is, go back to the WFS panel, select the connection you just created and click on Connect

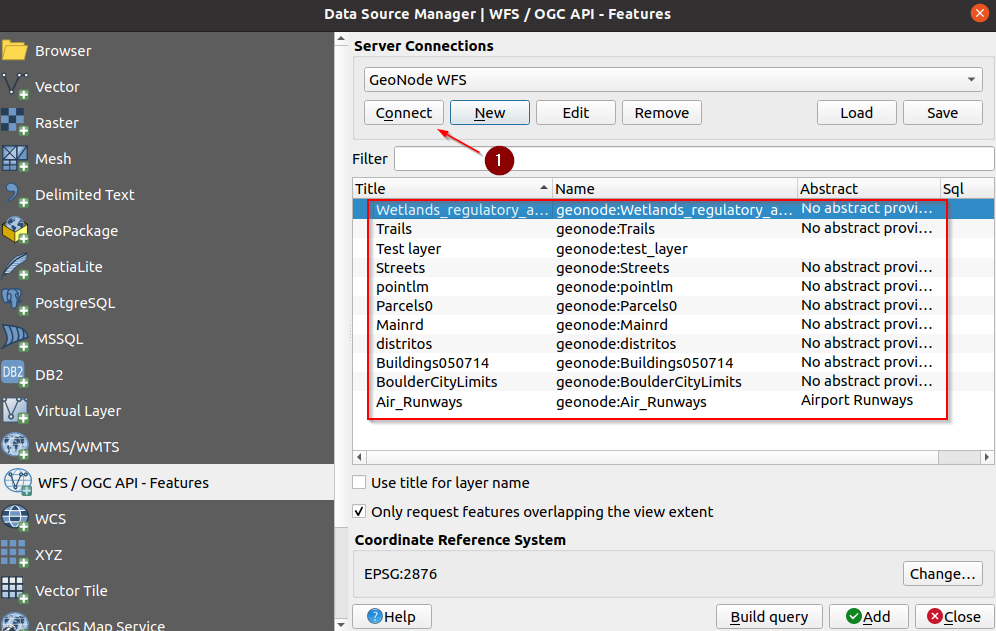

• If everything goes weel, you should be able to see the server offering; it will list all the layers the user has access to



• Select the Test Layer and click on Add

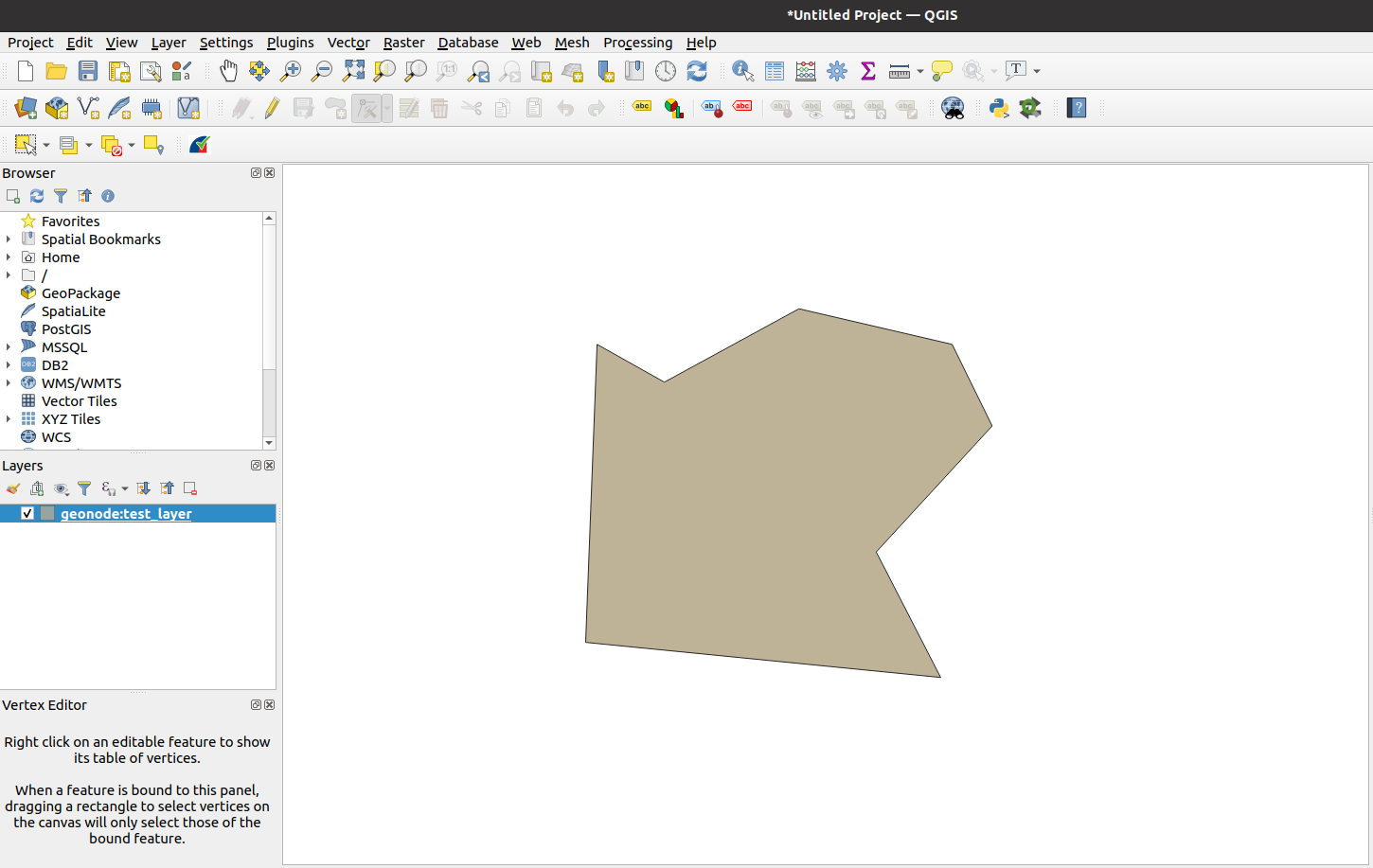

• QGIS will create a new project with the layer already loaded and centered to the map



Editing Contents: Values

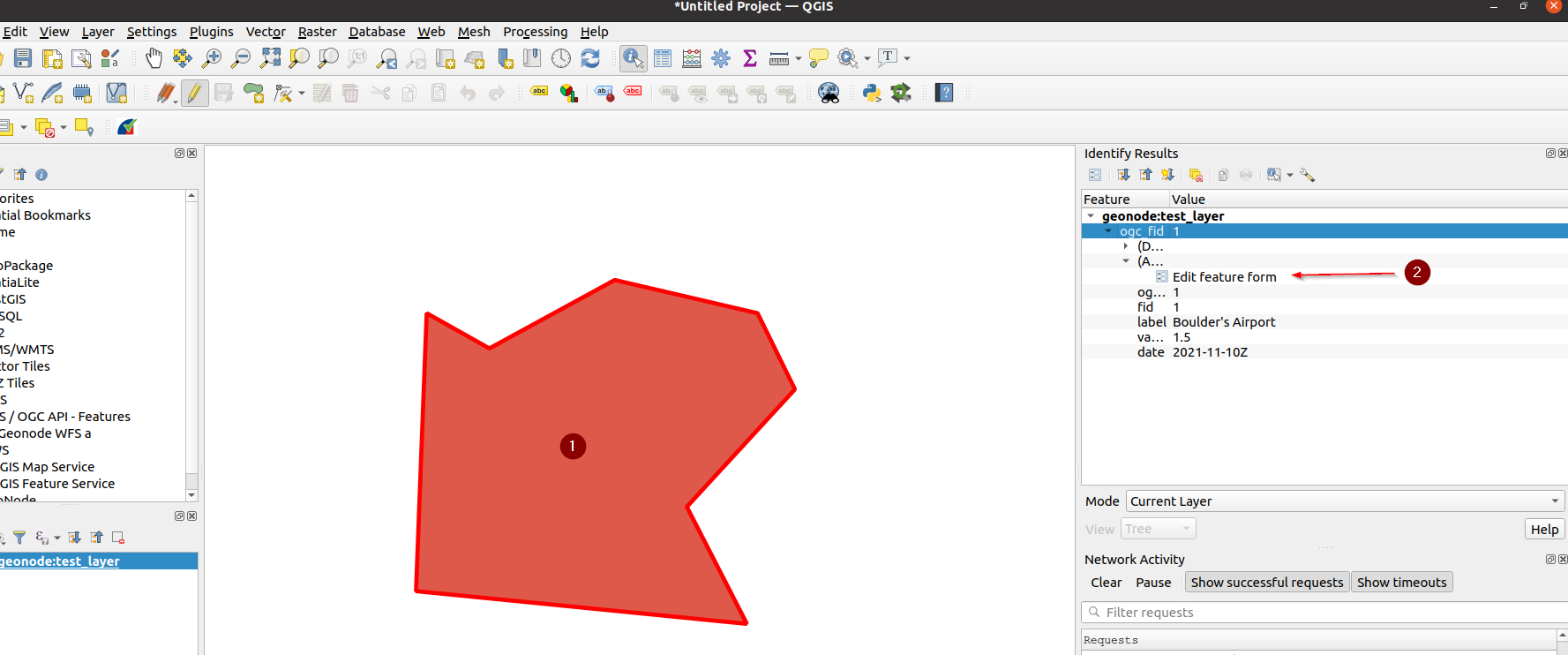

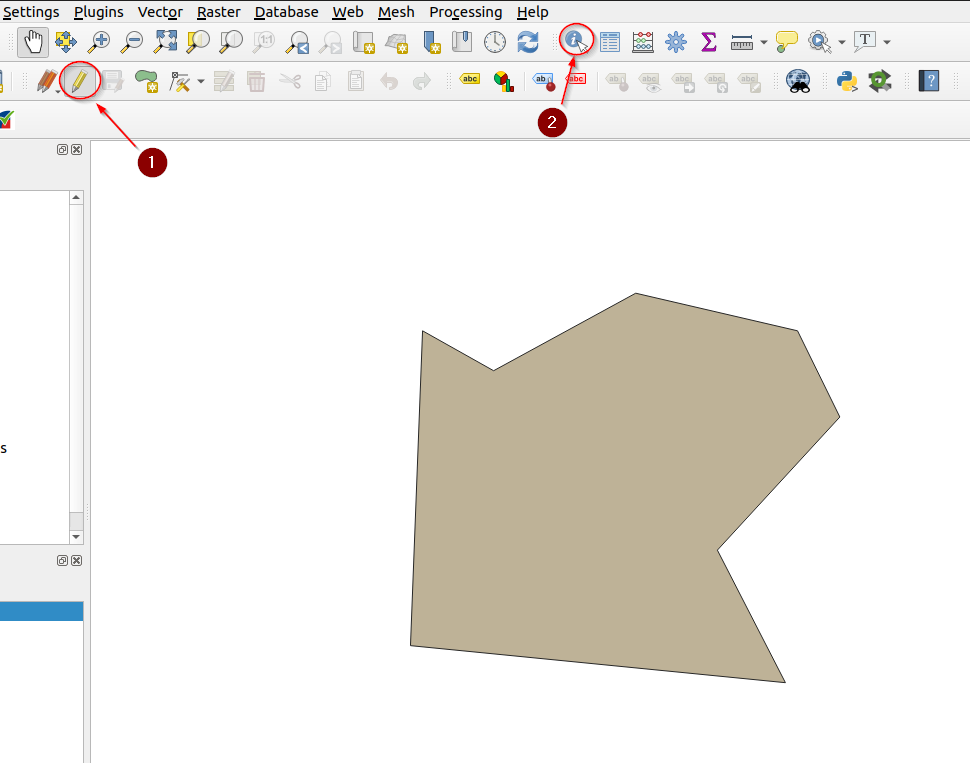

• Enable Editing Mode on QGIS and click on the Info button



• Click over the geometry to edit and, on the right panel, expand and click on the link Edit feature form

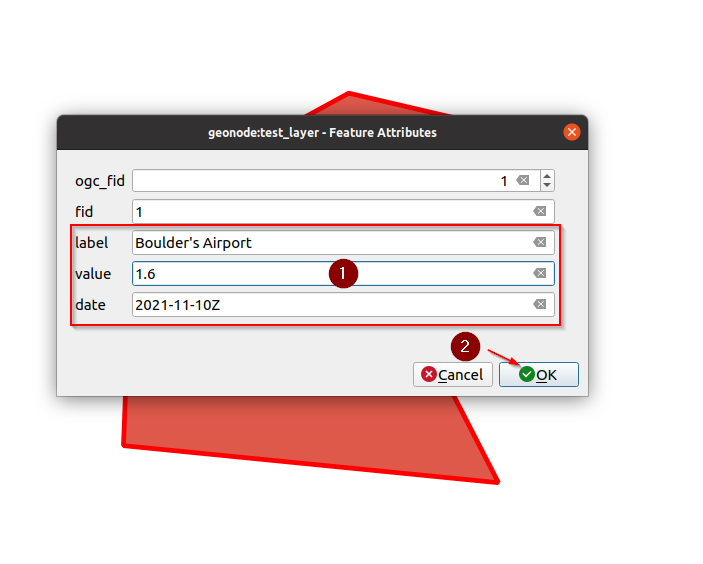

• That will show a small form with the values, change few ofthem and click on OK button



• A small floppy disk button will pop near the editing one meaning that there are some pending changes to be committed to the server; click on it in order to persist the changes



• At a successfull commit, the floppy disk button will be disabled again

Editing Contents: Geometries

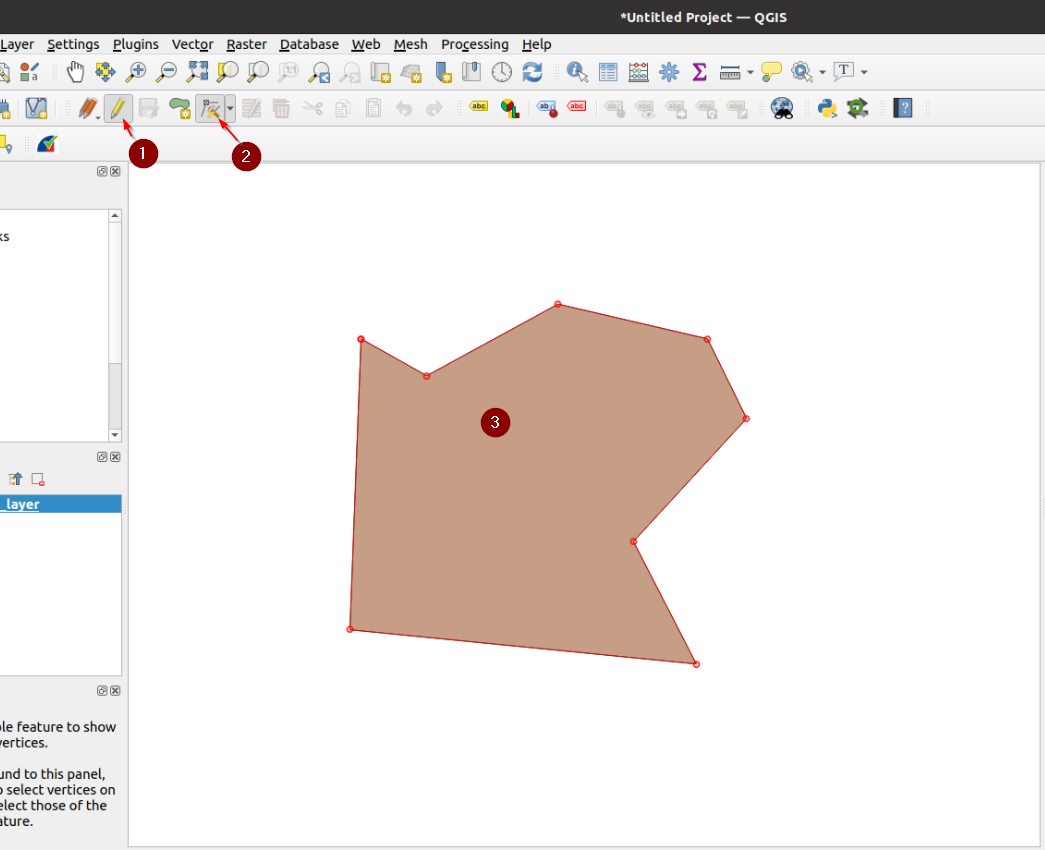

• Enable Editing Mode on QGIS and click on the Info button

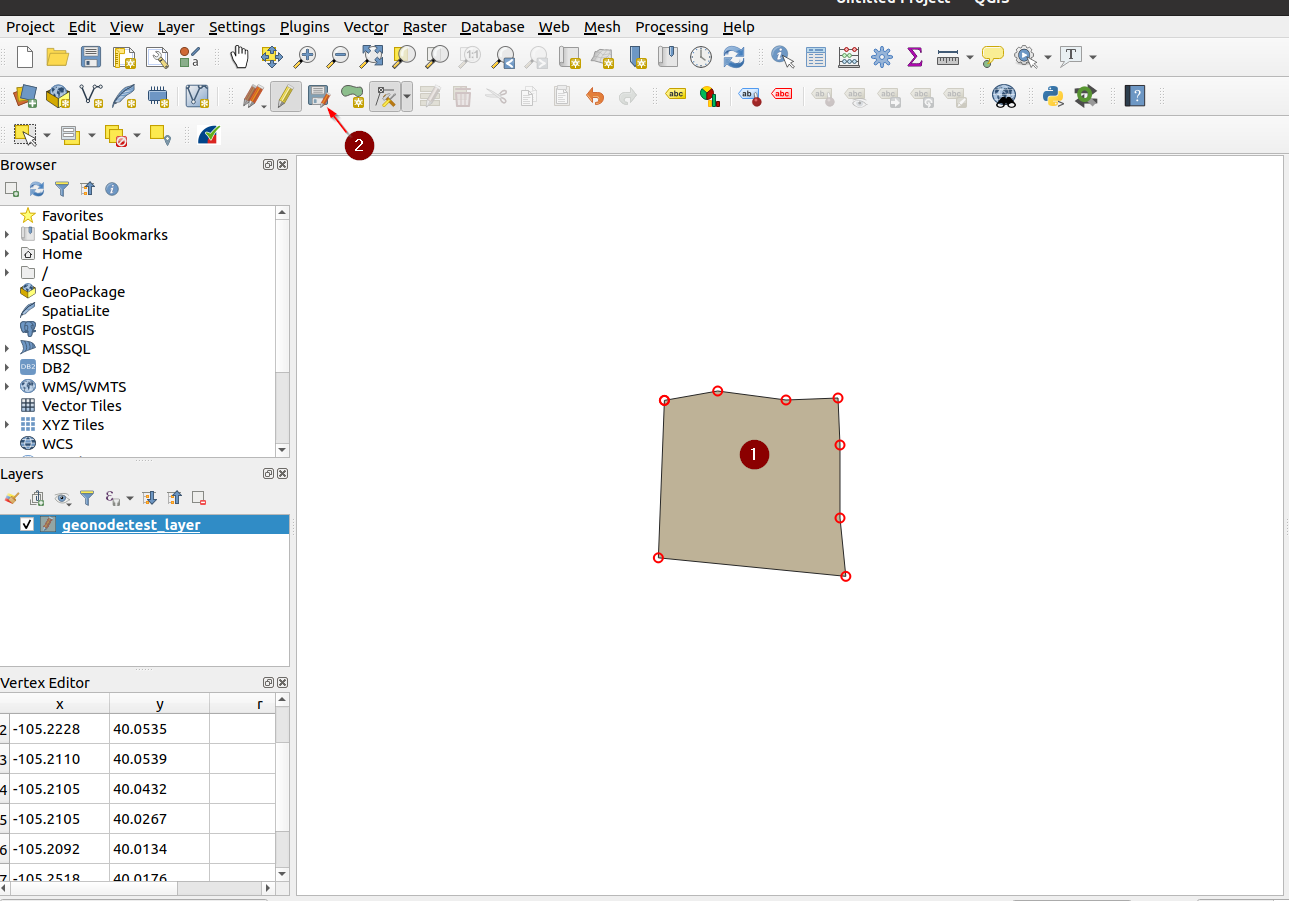

• Click on the Vertex Tool and enable it; from now on by moving over a geometry you will be able to modify its vertices



• Once happy with the changes, save them like we have done previously on the values

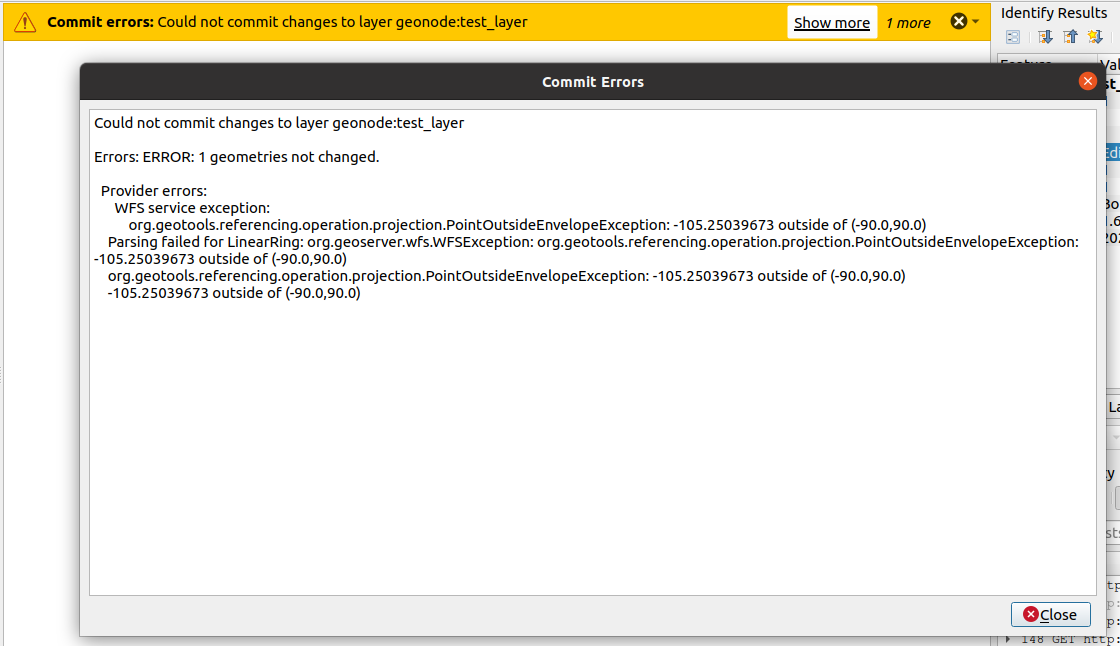

• With this specific layer most probably you will get an error on the bounding box extension; this is caused by the native projection of the layer and the QGIS not being able to correctly manage the dateline



• It is still possible to edit the layer from GeoNode directly, however in order to fix this issue easily, we will convert the layer into a Mercator Projected one.

We will pass through the database in order to perform such operation. In the next section we will see how to re-project and store and a DB table a layer and then push it back to GeoNode.

Next Section: Advanced layers publishing and management
