Installez l’Application GeoServer¶

Installer GeoServer¶

1. You’ve already installed Tomcat 8 in the system in the first section of the training. Before you deploy GeoServer stop the running Tomcat instance

   $ sudo service tomcat8 stop


2. Now copy the downloaded GeoServer archive inside Tomcat’s webapps folder

   $ sudo cp -Rf /home/geonode/my_geonode/geoserver/geoserver/ /var/lib/tomcat8/webapps/


3. Move GEOSERVER_DATA_DIR on an external location

   $ sudo mkdir -p /data/geoserver-data
   $ sudo mkdir -p /data/geoserver-logs
   $ sudo mkdir -p /data/gwc_cache_dir
   $ sudo cp -Rf /home/geonode/my_geonode/geoserver/data/* /data/geoserver-data/
   $ sudo chown -Rf tomcat8: /data/geoserver-data/
   $ sudo chown -Rf tomcat8: /data/geoserver-logs/
   $ sudo chown -Rf tomcat8: /data/gwc_cache_dir/


4. Set default Java settings

   You need to edit the /etc/default/tomcat8 file

   $ sudo vim /etc/default/tomcat8


   Make sure JAVA_OPTS are configured as follows

   #JAVA_OPTS="-Djava.awt.headless=true -Xmx128m -XX:+UseConcMarkSweepGC"
   GEOSERVER_DATA_DIR="/data/geoserver-data"
   GEOSERVER_LOG_LOCATION="/data/geoserver-logs/geoserver.log"
   GEOWEBCACHE_CACHE_DIR="/data/gwc_cache_dir"
   GEOFENCE_DIR="$GEOSERVER_DATA_DIR/geofence"

   JAVA_OPTS="-Djava.awt.headless=true -XX:MaxPermSize=512m -XX:PermSize=128m -Xms512m -Xmx2048m -Duser.timezone=GMT -Dorg.geotools.shapefile.datetime=true -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:ParallelGCThreads=4 -Dfile.encoding=UTF8 -Duser.timezone=GMT -Djavax.servlet.request.encoding=UTF-8 -Djavax.servlet.response.encoding=UTF-8 -DGEOSERVER_DATA_DIR=$GEOSERVER_DATA_DIR -Dgeofence.dir=$GEOFENCE_DIR -DGEOSERVER_LOG_LOCATION=$GEOSERVER_LOG_LOCATION -DGEOWEBCACHE_CACHE_DIR=$GEOWEBCACHE_CACHE_DIR"


   Avertissement

   Double check memory options -Xms512m -Xmx2048m are compatible with your VM available RAM

5. Set default Catalina settings

   You need to edit the /var/lib/tomcat8/conf/catalina.properties file

   $ sudo vim /var/lib/tomcat8/conf/catalina.properties


   Make sure bcprov*.jar is skipped at run-time

   tomcat.util.scan.StandardJarScanFilter.jarsToSkip=\
   ...
   xom-*.jar,\
   bcprov*.jar


6. Restart Tomcat 8 service

   $ sudo service tomcat8 restart


   You can follow the start-up logs by running the following shell command

   $ sudo tail -F -n 300 /var/lib/tomcat8/logs/catalina.out


Test GeoServer¶

Maintenant démarrez Tomcat pour déployer GeoServer:

sudo service tomcat7 start

Tomcat va extraire l’archive web de GeoServer et commencer GeoServer. Cela peut prendre un certain temps

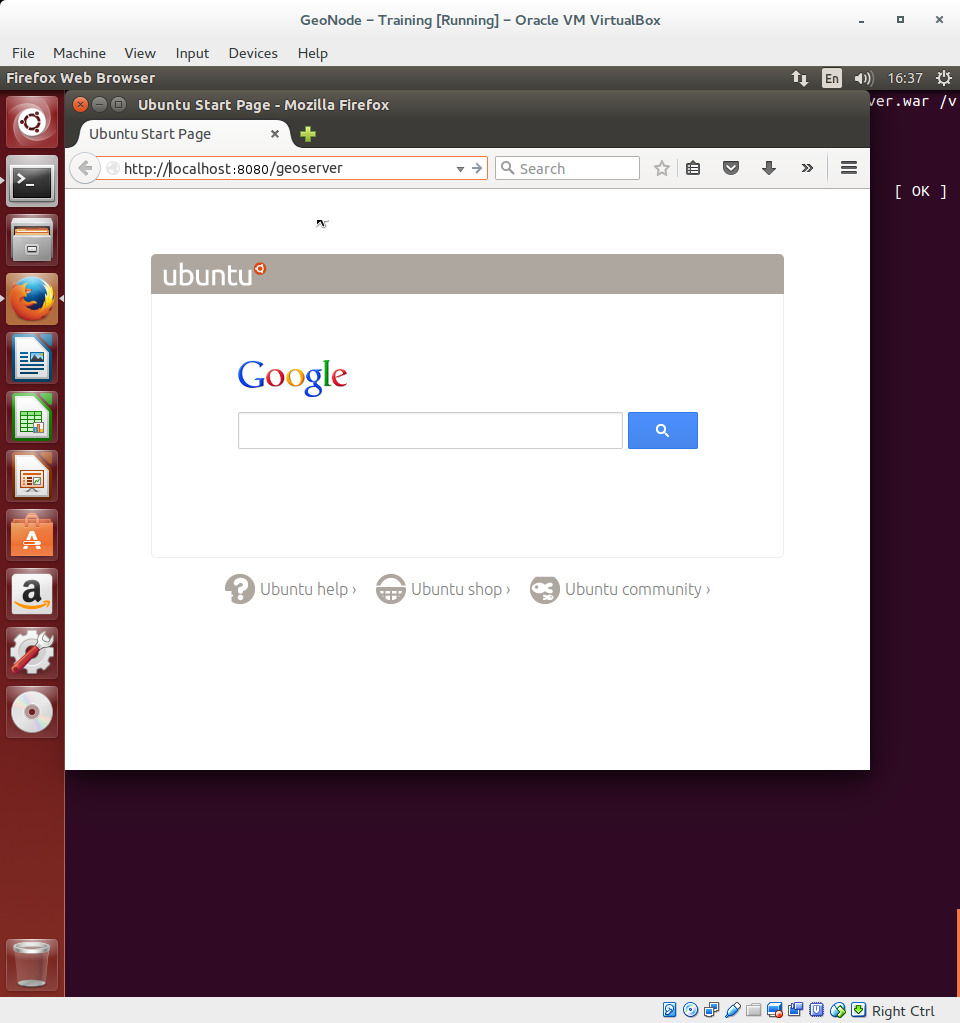

Ouvrez un navigateur web (dans cet exemple, Firefox) et naviguez jusqu’à http://localhost:8080/geoserver

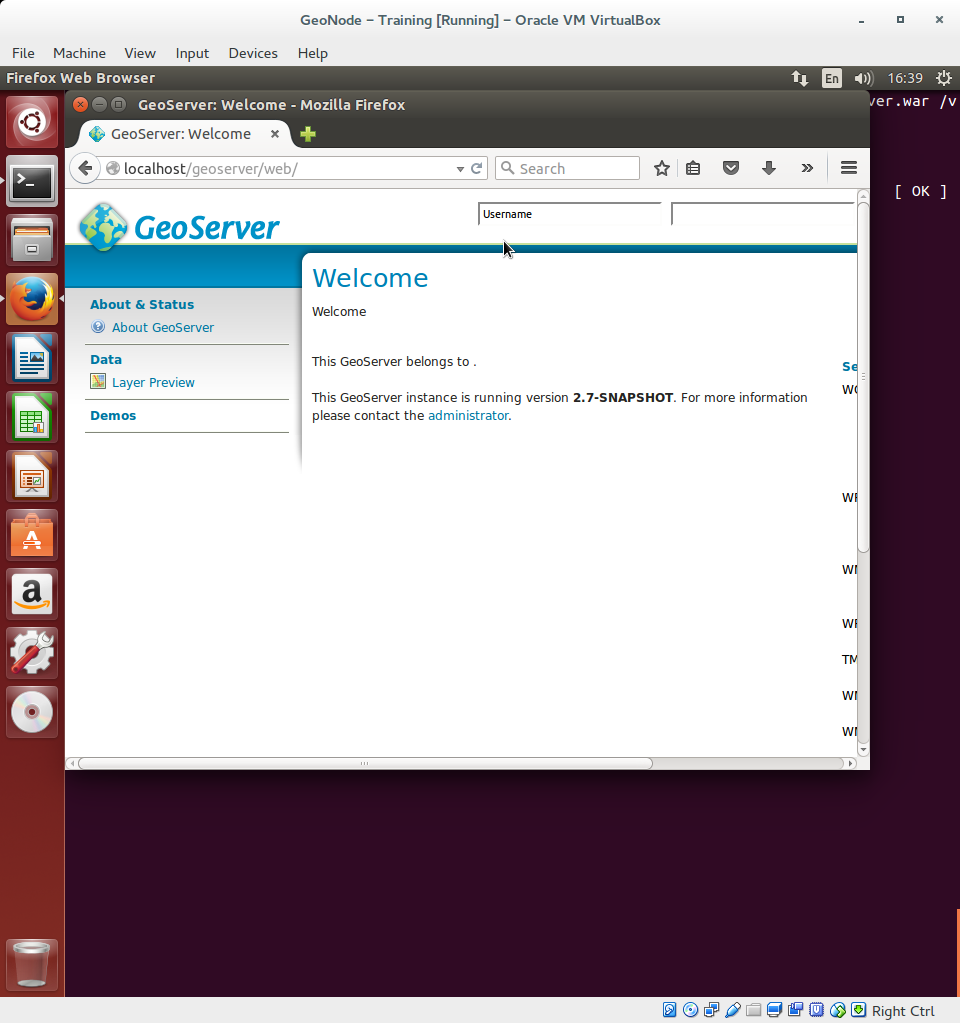

Dans le web de GeoServer, l’ interface apparaîtra dans quelques secondes :

Intégration de l’authentification GeoNode¶

All we need to do now is to integrate GeoNode authentication so that GeoNode administrator will be able to access and administer GeoServer as well.

1. Stop GeoServer

   $ sudo service tomcat8 stop


2. Edit /data/geoserver-data/security/filter/geonode-oauth2/config.xml with a text editor

   $ sudo gedit /data/geoserver-data/security/filter/geonode-oauth2/config.xml


   And make sure the following values are configured as follows:

   <accessTokenUri>http://localhost/o/token/</accessTokenUri>
   <userAuthorizationUri>http://localhost/o/authorize/</userAuthorizationUri>
   <redirectUri>http://localhost/geoserver</redirectUri>
   <checkTokenEndpointUrl>http://localhost/api/o/v4/tokeninfo/</checkTokenEndpointUrl>
   <logoutUri>http://localhost/account/logout/</logoutUri>


3. Edit /data/geoserver-data/security/auth/geonodeAuthProvider/config.xml with a text editor

   $ sudo gedit /data/geoserver-data/security/auth/geonodeAuthProvider/config.xml


   And make sure the following values are configured as follows:

   <baseUrl>http://localhost/</baseUrl>


4. Edit /data/geoserver-data/security/role/geonode\ REST\ role\ service/config.xml with a text editor

   $ sudo gedit /data/geoserver-data/security/role/geonode\ REST\ role\ service/config.xml


   And make sure the following values are configured as follows:

   <baseUrl>http://localhost</baseUrl>


5. Edit /data/geoserver-data/global.xml with a text editor

   $ sudo gedit /data/geoserver-data/global.xml


   And make sure the following values are configured as follows:

   <proxyBaseUrl>http://localhost/geoserver</proxyBaseUrl>


6. Restart GeoServer to make the changes effective

   $ sudo service tomcat8 restart


   You can follow the start-up logs by running the following shell command

   $ sudo tail -F -n 300 /var/lib/tomcat8/logs/catalina.out
